Automatic butyl sealants extruder machine with big butyl barrel

High speed butyl extruder machine is a necessary equipment for manufacturing aluminum-frame type Double glazing glass, even it is necessary for Vertical insulating glass processing line.The butyl that be glued on the both side of aluminum frame by New butyl extruder machine, is the first sealant for insulating glass. So the quality of the butyl directly decides the quality of insulating glass and using life.

Butyl extruder machine is controlled by program PLC, can automatic and exactly finish gluing function, operators only need to support the aluminum frames, others( clamping roller, transfer and etc) are automatic finished by setting program. This equipment is suitable for square, rectangular, shaped, arc and kinds of aluminum frames. Inner diameter of butyl cylinder is 200mm, maximum can load butyl of Φ195 * 250mm (7kg).

Transfer unit consists of frequency control motor, belts and belt pulleys. The range of running speed for belt is 5 ~ 47m / min; the height of beam can be adjusted by hand wheels, that locate in the left side of machine( see from picture 1.2), after adjusting to the properly height, please tighten front and back set screws. Structure of this part is simple and can be easily to adjust, it also has quickly transfer speed, stable and reliable to operate.

In normal conditions, operator can independently finish gluing butyl on the two side of aluminum frame within the size of 2000 * 2000 mm. When the size is more than 2000 mm, should be done by two people. Assist operator should be away from the conveyor belt more than 200mm, in order to avoid the danger of clamping and involving in the belt.

Main feature

• PLC control system, KINCO touch screen interface

• Hydraulic system using German brands

• Alarm system, reminding adding butyl glue

• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable

• Exhaust function

• Short preheating time, improve work efficiency

• Coating shape frames, the roller device can be selected at will

• Fast coating speed, can up to 47m/min

• Stable pressure and even coating

• Saving glue. The amount of glue on both sides can reach 4g / m

• Big glue barrel, 200L. (Optional)

Technical data

Electrical parameters

Related product of LIJIANG GLASS

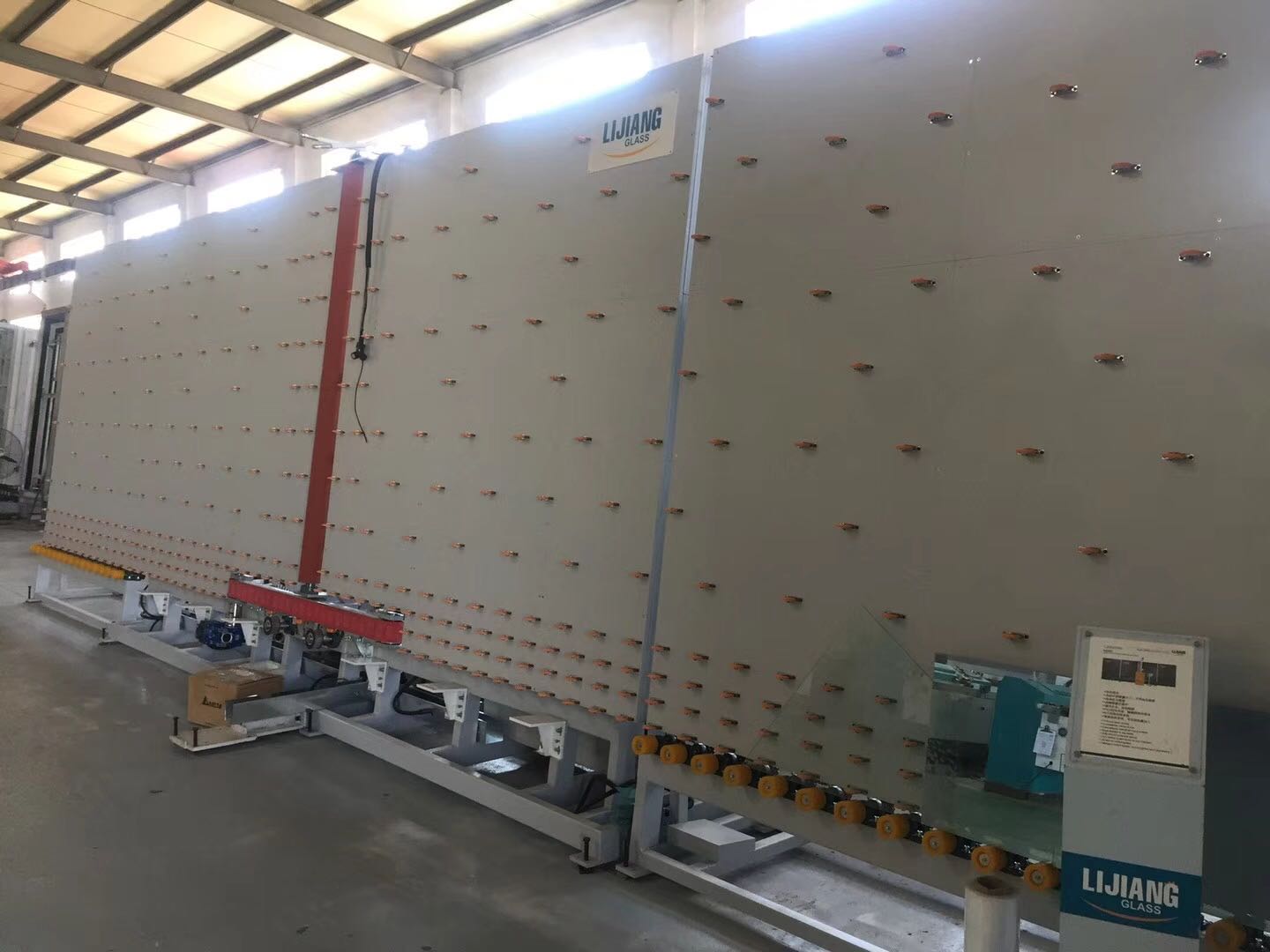

Vertical Full Automatic Low-e Glass Edge Deletion Machine With Deleting Low-e Film
