CNC automatic glass cutting machine for processing glass

1. Basic principles:

Its working principle is to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control,cutc the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part.

1. Equipment Composition:

Automatic Cutting table: It consists of chassis mechanism, beam mechanism, worktable mechanism, cutting knife mechanism, conveying mechanism, photoelectric scanning positioning mechanism and electrical control system.

2. Detailed working steps:

Refer to "Instructions for the Use of Fully Automatic Glass Cutting table"

3. Equipment performance:

1,The chassis material is welded and formed by the national standard manganese-containing section bridge steel (Q345A) after aging treatment. The comprehensive mechanical properties, plasticity and welding properties of this kind of steel are good. The frame is processed as a whole, and the stability and accuracy of the equipment are greatly improved by tempering aging treatment to ensure the stability of the product. After special rust removal process, the surface rust spots and oxide layer are removed. The top coat is sprayed with high-grade epoxy primer and the top coat is sprayed with high-grade automobile paint.
2,Through the analysis of professional structure software, the equipment ensures the stability, dynamic balance, mechanical strength to achieve the most perfect match, and ensures that the structure of the table is not deformed.
3,The device has one key reset function. It can complete all the preparations before starting automatically by clicking on the touch screen, which greatly improves the work efficiency.
4,Reasonable arrangement of integral cables and gas pipes and complete sealing
5,High-speed silent linear guide is adopted for guide rail, which has high cutting accuracy and low noise.
6,Advanced Japanese Ankawa servo motor is used in the driving part, which makes the equipment reliable, error small and efficient.
7,Japanese SMC proportional solenoid valve is used for cutting rice. The pressure is automatically adjusted according to the glass thickness. The cutter head rotates 360 degrees, and the upper and lower buffering cutter cuts (any straight line and all kinds of special shaped glass can be cut accurately).
8,The knife head is equipped with knife protection function. If the knife head falls outside the glass or the glass gap, the program stops automatically, effectively preventing damage to parts and glass.
9,Double motor high speed drive (large inertia Yaskawa servo) ensures cutting speed and fluency
10,Conveyor device, synchronous automatic transmission device, convenient for glass upper and lower transmission, frequency conversion speed regulation, stable and easy to optimize the transmission speed
11,Positioning device, photoelectric scanning positioning system
12,Compensation function, tool eccentricity compensation, clearance compensation, pitch compensation

4. Mechanical configuration:

1. ,NSK Main Bearing: NSK；
2. ,Guideway: FUJUN;
3. ,Rack/Gear: RUIAN;
4. ,Knife wheel/holder: Bowler, Germany;
5. ,Table: Imported industrial felt;
6. ,Table board: waterproof high density board;

5. Electrical configuration:

1. Power supply voltage: 380V/50HZ (special circumstances can be designed according to customer requirements)
2. Gas source pressure: 0.6-0.8 Mpa; (User provided)
3. Servo system: Yaskawa servo motor
4. Converter: Delta
5. Conveying reducer: Sankai/Zhongyan
6. Proportional Valve: SMC
7. Main solenoid valve: Airtac
8. Motion Controller: GUGAO/OPTIMA
9. Intermediate relay: Hequan/Puruide
10. AC contactor: Schneider
11. Motor Circuit Breaker: Schneider
12. Air switch: Zhengtai
13. Proximity switch: Guangchuan/puruide/aotongmike

Note: Depending on the delivery date and technical improvement, the production company reserves the right to replace the purchased parts of the same brand.

6. Technical parameter

7. Software part:

Motion Controller:

1) Fast running speed, smooth running, high control accuracy, modular controller structure;

2) The man-machine interface is simple and generous, the parameter adjustment is simple, the parameters that need to be modified by operators are less, simple and intuitive, and the requirements for operators are low.

3) Pipeline cutting mode, photoelectric positioning cutting mode and direct cutting mode are set freely through options. The automatic cutting mode and air operation mode can be switched at any time during the processing.

4) Graphic library nesting programming, select special-shaped from the library, set relevant parameters, processing quantity, automatic nesting, generating processing trajectory;

5) Complete storage of glass pressure stock, once the cutting pressure of each specification thickness is input and saved, it can be directly invoked;

6) Real-time tracking and displaying of processing path, timely recording of motion coordinates, axis state, I/0 state, automatic recording of fault diagnosis and alarm;

7) Receive a variety of processing documents Super Package Software, AUTOCAD DXF file, the system has its own graphics editing software (exactly the same as Paul's editing method);
8) Graphic library nesting programming, selecting abnormal shape from the library, setting relevant parameters, processing quantity, automatic nesting, generating processing trajectory;

9) The sorting function of DXF class files, including the nearest point, entry point, or by graphics color clockwise, counterclockwise sorting and other options. Free the switch between single-phase cutting and bidirectional cutting is realized.

10) Photoelectric positioning function, according to the actual position and deflection angle, automatically adjust cutting;

11) Compensation function: tool eccentricity compensation, clearance compensation, pitch compensation;
12) All kinds of protection: including soft and hard limit, cutter pressure limit, external emergency stop control and so on.

Optimization software:

1. Importable optimization results done in the Office
2. Cutting scheme can be manually created and edited
3. With copy and mobile functions
4. Manual editing of cutting sequence
5. The cutting scheme can be quickly created by X, Y and Z modes.
6. Simultaneous optimization of multiple original and small patches
7. Optimized typesetting without size limitation
8. Optimized Result Rotation, Mirror Management, etc.
9. Priority management for small size cutting optimization
10. Priority management of original glass sheet optimization
11. Template Scanning Function and Scanning Graphics Processing
12. Original glass sheet storage Management
13. 20 efficient optimization algorithms
14. Cutting graphics can be edited
15. Label Design and Label Printing(Label-WAY)
16. Clear Printing of Optimized Result Report
17. Excel Data File Import
18. Low-E and Adhesive Glass Cutting Management
19. A graphics library containing 350 parametric graphics, including all the commonly used graphics types (Geo-Way)
20. Two-Dimensional CAD System with Abnormal Scanning Processing Function (Cad-Way)
21. Automatically converting digital signals from CNC systems into graphical forming points
22. There are many language choices for the software operation interface, including the Chinese interface.
23. Follow up the latest international software development, provide upgraded versions in real time, and achieve the latest functional requirements for customers

Related products of LIJIANG GLASS

Automatic Low E Glass Film Edge Grinding Machine For Deletion Of Low-e Film

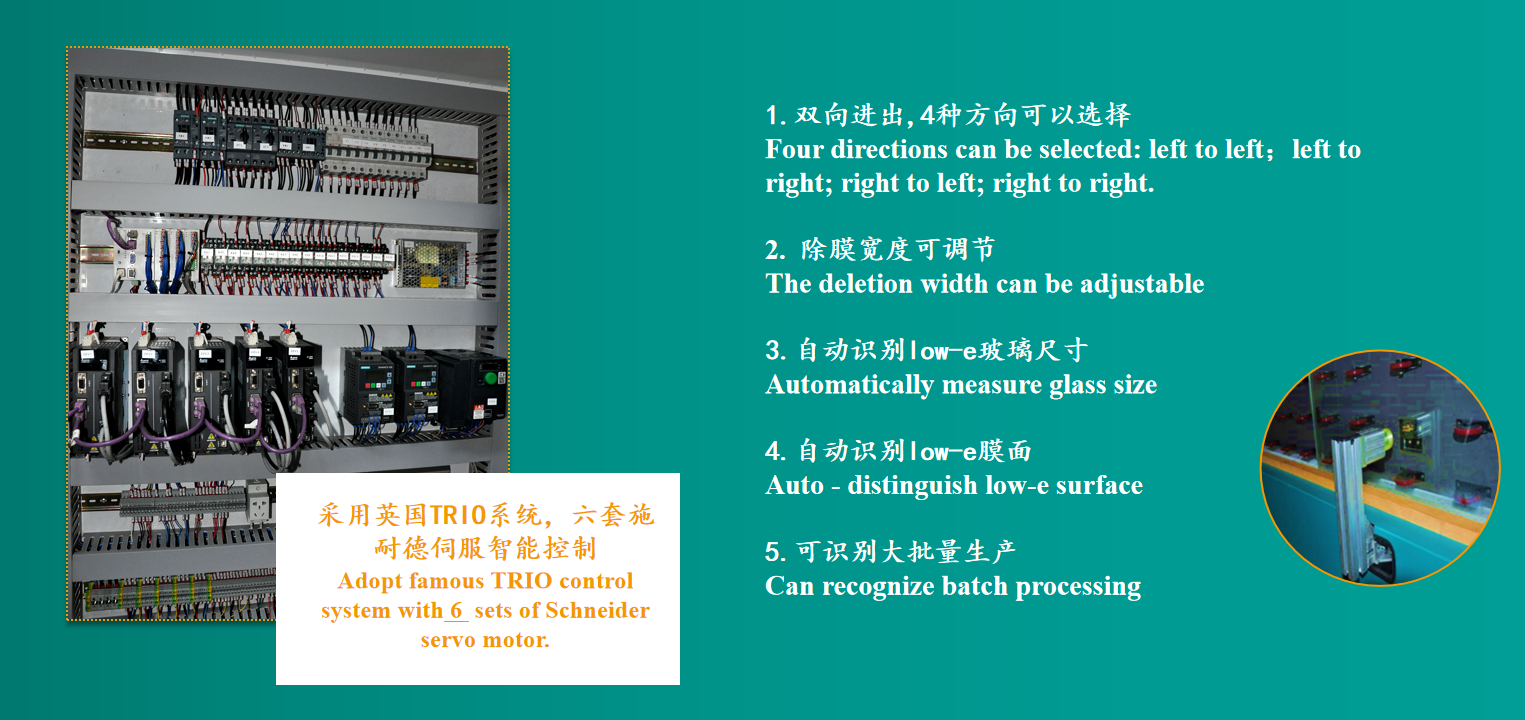

Insulating glass processing machines : Vertical low-e glass film deletion machine for making double glazing glass is used to delete the film on the low-e glass with fast speed. The deletion machine can delete rectangle glass and shape glass, it has 6 servo motors.

Main Features:

Two-way glass access

Delete double and triple silver low-e glass

Automatically measure glass size

Automatically distinguish low-e surface

Edge deletion is adjustable

The head can be rotated 360°Safe and full automatic device

PLC control system, touch screen interface

Six servos control system

Intelligent control system, can recognize batch processing

RFQ :

1. What is the function of the film deletion machine?

The main function is to remove the edge film of Low-e glass

2. Why should delete the low-e glass film?

To prevent the film from oxidizing when the insulating glass is synthesized.

3. What glass needs to be deleted?

When off-line Low-e glass

4. In addition to using the vertical film deletion machine to delete film, what other ways can remove film?

Manual, horizontal edge grinding machine, bilateral edge grinding machine, four-edge edge grinding machine, cutting machine, etc

5. What are the advantages of using our film separator? What are the disadvantages? What are the advantages of using other methods? What are the disadvantages?

With our vertical film rdeletion machine can be connected to use, save labor, film removing effect is good, glass flatness is good, can be in addition to the large plate glass. Disadvantage is to increase the length of the whole line, cover a large area.

Manual film removal effect is poor, slow speed. The others are film removal before toughening, because the heating time of white glass and Low-e glass during toughening is not the same, it will cause glass deformation, advantage does not need too high investment.

6. Is glass before toughening divide film is good still after toughening divide film is good? Why is that?

After toughening, film removal is good, glass deformation is small.

7. What brand of PLC, servo motor driver, frequency converter is used to deletion machine?

At present, delta PLC servo motor and drive, inverter delta and schneider

8. How many sections does the film deletion machine divide into? What are the dimensions of each segment? What are the roles?

The film deletion machine is divided into three sections, the first or the third section is 2.2 meters, mainly for glass input and output and storage of glass, the middle section 5.3 meters, mainly for film deletion.

9. Can the device distinguish the low-e film surface?

The film layer can be detected automatically.

10. Do you need to input the length and width of the glass when using the film remover?

No, it's automatically detected.
