LJSCLM CNC Automatic Glass Cutting Machine The glass cutting line
has been extensively updated with the introduction of the leading
European technology, the latest technologies and processes in the
world to eliminate the insufficient performances, incomplete
functions and unstable operation of the home glass loader, also
with the precise racks, slide rails, Servomotors and pneumatic
elements, it achieves long-term stable accuracy and fast running
with the latest American Galil control system, it is characterized
by even faster operation, higher security, higher efficiency, more
stability and better accuracy: with the light barrier positioning,
it enables simple and precise Operation and a considerable saving
in labor
LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is
ready for installation
LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is
ready for working in our customer's workshop

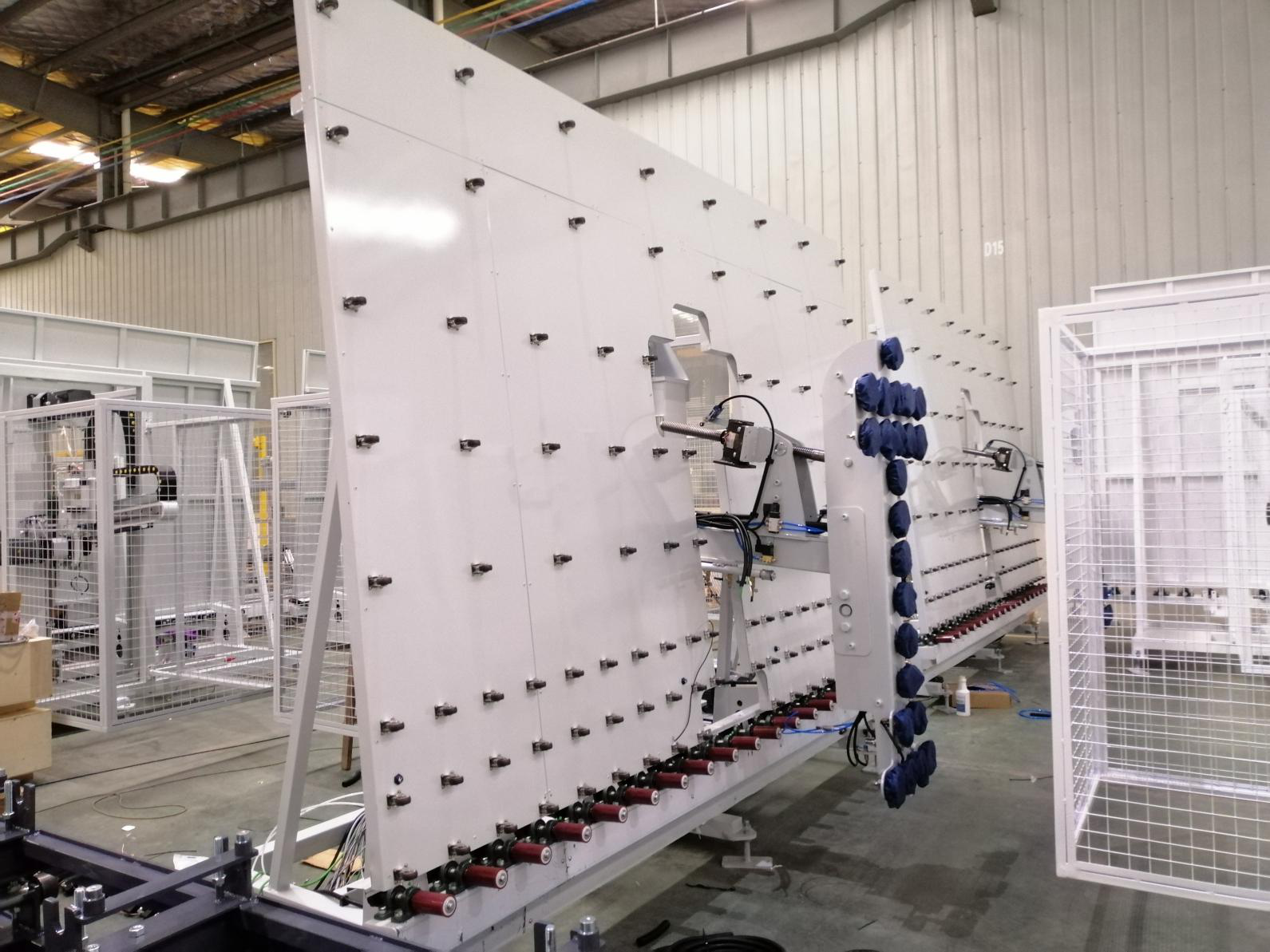

LJASP3525 vertical loading table of insulating Glass Machine
A.Technical performance:
1. All main frames of equipment use quality rectangle steel pipe
groups of national standard welded and fitted with bolt.
2.Electric control system of equipment use Schneider brand modules
of electric; Program control uses imported SIMENS programmable
controller, fitted with touch panel.
3.The machine was designed with concise appearance and conforms to
the modern factory with safe signs, and reference to the Euro IEC
standard from design until manufacture and installation.
| TECHNICAL DATA |
| Max glass size | 2500*3500mm |
| 2000*2500mm |
| Glass thickness | 3-12mm |
| Air source | 0.8Mpa |
| Power | 3P 380V/1P+N 220V 50Hz 38KW |
| Machine Size | 3200*2800*1800mm |
| 2600*2800*1800mm |
B.Mainly technical parameter:
1. Load max. Glass size: L X W = 3500 x 2500 mm
Load at least glass size: L x W = 800 x 600 mm
Glass thickness: (3-10mm)
2. Dimensions loading table approx .:
L X W X H = 3700 mm x 2800 mm x 2500 mm + lower support 530 mm (±
30 mm)
3. The vertical loading table uses a servo motor as a drive system
and all motors with infinitely variable speeds, the transfer speed
of this table is 2-35 m / min; Charge cycle time: 35S
4. Adopts fully closed loop control system for accurate positioning
for the machine and stable running system; Configuration
description
5. The horizontal movement of the tilting arm controlled by servo
motor and precise gear, rack and pinion drive;
6.Lifting structure: servo motor and precise gear control and
synchronous belt drive;
7. The tilting structure of the suction cup frame: servo motor and
precise gear control and crank connecting rod drive;
8. Lower transfer structure, servo motor and precise gear control
and chain drive.
9. 4-axis fully digital control with precise positioning and quick
flexibility; All speed can be
adjustable according to the speed of the production line.
10. The super-man-machine interface monitors the operating status
and the system parameters of the plant, the data can be set
according to different glass shelf heights and angles and the
current production shift can be preset or recorded.
11. Vacuum pump system: highly efficient one-piece rotary vane
vacuum pump;
Suction Cup: Imported PF Suction Cup (Type 120MM)
12. Compressed air supply: 5-7 bar, 30 l / min, compressed air
supply: 5-7 bar, 30 l / min;
13. Power supply: 380V, 50HZ, three phase,
As a professional insulated glass machine manufacturer in China,
excluding materials such as molecular sieve and aluminum spacer and
sealant. We're good at designing and manufacturing automatic
vertical insulating glass processing lines, vertical low-e glass
edge quenching machines, automatic robotic insulating glass
manufacturing lines, and so on.
