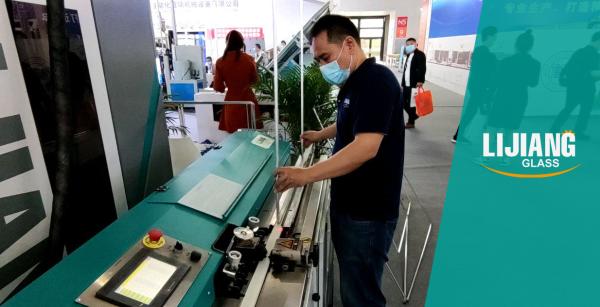

Automatic Butyl Extruder Machine for the first seal of insulating
glass
Introduce of butyl extruder machine:
Automatic Butyl extruder machine is one of sealants spreading
machine, it uses butyl glue, the first sealants to seal the sides
of the spacer frames.Butyl adhesive coating machine is a very
important part of insulating glass processing, which directly
affects the sealing effect of insulating glass. The glue butyl extruder machine in Lijiang glass has three models,
LJTB01, LJTB02 and LJTB03. LJTB01 is the new butyl extruder machine
which has the fast speed to coating butyl glue on spacer sides.
LJTB02 is the common butyl extruder machine, it is the first one
butyl coating machine in automatically. LJTB03 is the full
automatically butyl extruder machine, which do not use hands when
coating butyl glue, can connect with spacer transfer machine.
Main feature of Automatic butyl extruder machine:
• Saving glue. The amount of glue on both sides can reach 4g /
m,The same sealing effect, the glue is very economical
• Automatic boot can be set to save working time
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the
distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Synchronous belt adopts non-stick material, not easy to stick
• Fast coating speed, can up to 47m/min
• Stable pressure and even coating
• Big glue barrel, 200L. (Optional)
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Details of butyl extruder machine
1.Adopt Germany Siemens brand, stable performance.
The supercharging system adopts famous pneumatic and hydraulic
cylinder, control the pressure of outlet oil strongly.
2.Automatic filter function
Automatically filter debris, keep spreading evently.
3.Glue cylinder
Adopt the upright structure, easy to change butyl.
4.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
5.Alarm system
Automatically alarm system, reminding adding butyl.
6.Guiding Wheel
Using guiding wheel to help arc frames coating.
7.Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic
cylinder, control the pressure of outlet oil strongly.
