Insulated Glass Butyl Sealant Coating Machine Butyl Rubber Extruder
Machine Butyl Glue Coating Machine

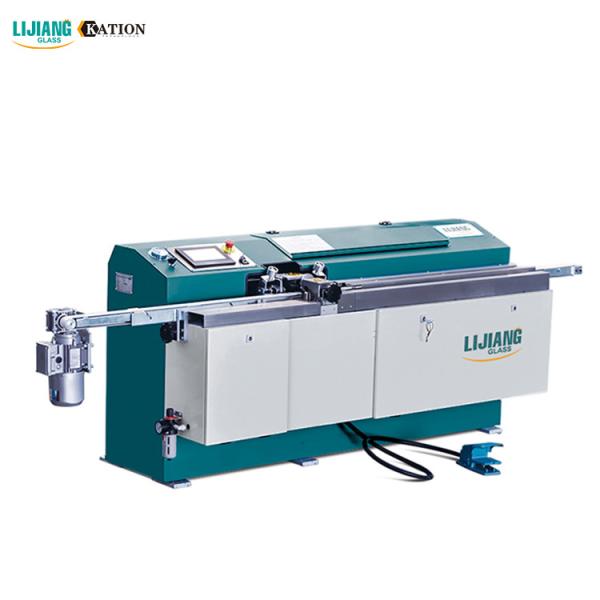

LJTB01 Butyl Extruder Machine
Application of extrusion coating machine
The type of LJTB01 butyl extruder machine is used for spreading
aluminum spacer
frames evenly with hot melt butyl. LJTB01 butyl extruder machine
use large electrical
control panel which makes the operation more easier. The conveyor
of aluminum is
controlled by frequency converter, and the speed can be adjusted
from 0m/min to
47m/min, which has the fastest speed in China. LJTB01 butyl
extruder machine
is very popular with energy-saving. Its squeezing system adopts
pneumatic and hydraulic
supercharging system, which makes the squeezing pressure more
stable. The dispensing
cylinder uses vertical rotary support system and it makes the
refill of butyl easier. It can
prolong the life of squeezing system and set the heating time in 24
hours with electricity
and air pressure. The distance of squeezing head can be adjusted
automatically according
to different aluminum spacer. The LJTB01 butyl extruder machine has
reached the worldwide
technology with the characteristic of complete function and stable
working mode.
² Technical Data of electrical control panel
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
² Main components of frequency converter
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
² Other features of electrical control panel
1. Filter out debris automatically through auto exhaust, keep
spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing
material automatically.
