    2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online

    2500 Height Double glazing glass production Line with Filling Argon Gas Online

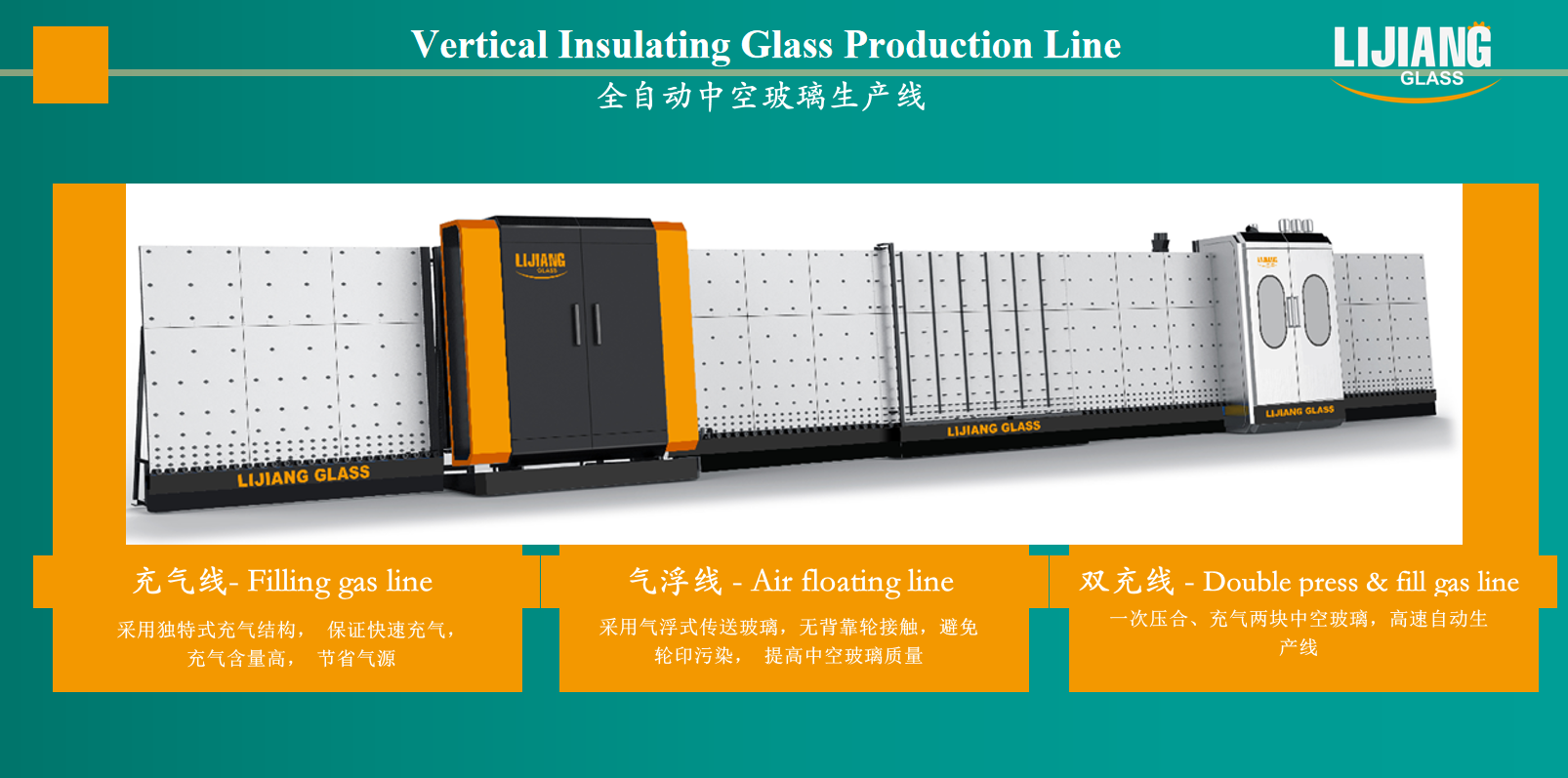

    The automatic insulating glass processing line is used to making double glass, triple glass and step glass for windows, doors, buildings, ships, high-speed train windows and so on. Insulating glass processing line contains the glass washing machine, the pressing and filling gas machine. Now, we have normal IG line without filling gas, IG line with filling gas, IG line with air floating and super fast speed IG line with filling gas.


    Main Features:

    • The line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section

    • PLC control system, touch screen interface

    • Using Siemens servo motors

    • Applicable to produce double glass, triple glass

    • Step glass with optional edges and shaped glass

    • Can fill argon gas automatically

    Air-floating technology to transfer glass. To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality (Optional)


    Technical data

    Max. glass size2500mm*3500mm
    Max glass size for filling gas2500mm*3200mm
    Min. glass size280mm*450mm
    Glass thickness3-15mm
    Insulating glass thickness60mm
    Glass washing speed2-10m/min
    Glass conveyor speed45m/min

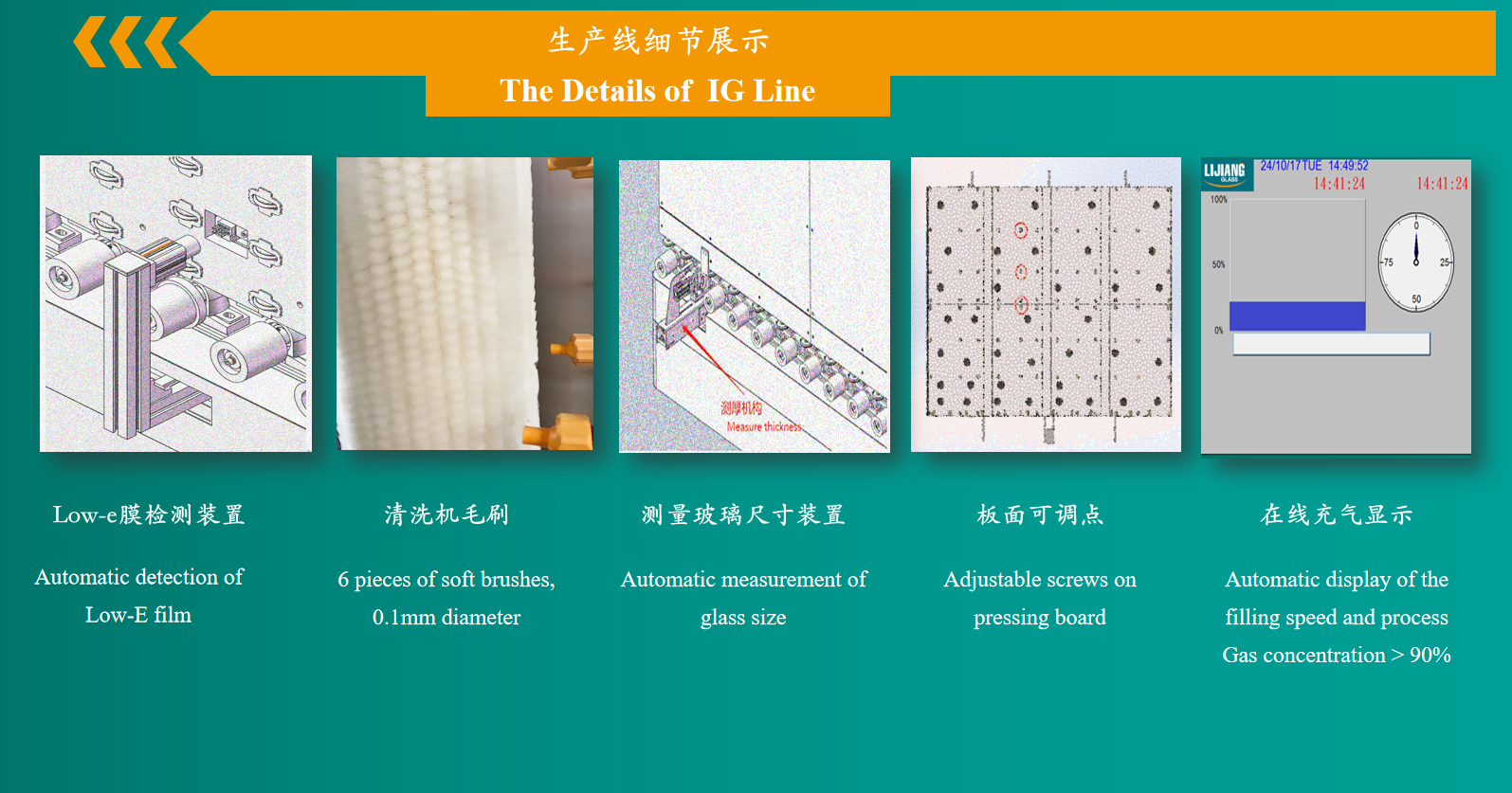

    Washing brushes3 pairs of soft brushes with 0.1mm hair
    Water supplyWater consumption:0.5t/h conductivity:40μs/cm
    Air supplyFlow: 0.8m/min
    Air pressure≥0.8MPa
    Total power3P 380V 50HZ 40KW
    Dimension23500*3500*3700mm
    Weight6500kg

    Electrical parameters


    NAMEORIGINBRAND
    Servo motorGermanySIEMENS
    PLCGermanySIEMENS
    Low voltage electrical applianceGermanySIEMENS
    Frequency converterGermanySIEMENS
    Transfer motorTaiwanLINHAI
    Brush motorTaiwanLINHAI
    Water pumpChinaLINGXIAO
    GuideTaiwanHIWIN
    Pneumatic ComponentsTaiwanAIRTAC
    Electric gaugeChinaMIRAN
    Photoelectric switchGermanySICK
    Micro SwitchTaiwanTEND
    Button and indicator lightFranceSCHNEIDER
    touch screenTaiwanWEINVIEW
    Intermediate relayJapanOMRON
    IG line with gas filling online
