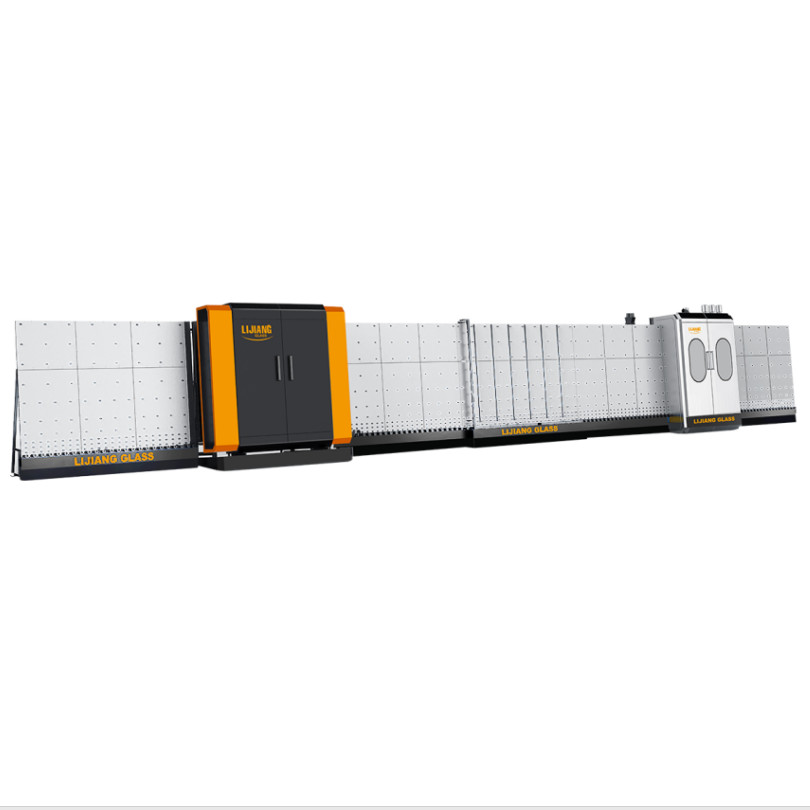

    LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

    Ask Lasest Price
    Brand Name : Lijiang
    Model Number : LJBZ2535
    Certification : CE
    Price : Negotiable,
    Payment Terms : L/C, T/T
    Supply Ability : 10set/month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

    LIJIANG GLASS-FOR WORLD GLASS MANUFACTURE SERVICE



    LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

    LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

    LJBZ2535 Vertical Automatic Insulating glass

    production line with gas filling on line

    APPLICATION
    As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.


    LJBZ2535 Vertical Automatic Insulating glass

    production line with gas filling on line

    include 7 parts: (from right to left)

    1,Loading section(with low-e checking)

    2,washing and drying section(can washing low-e glass)

    3,conveyor section

    4,checking and assembly section

    5, conveyor , measure and sensor section

    6,press part with gas filling

    7,unloading section


    • Adopt SIEMENS control system, keep stable performance • PLC control system, touch screen interface

    • Automatically adjust the depth of glue with digital display

    • Using servo to control system, modular function, superposition function

    • Applicable to produce stepped IG, triple IG and shaped IG • Two pieces of IGU can be made and filled with argon gas in one time (Optional)

    • Min & Max glass sizes can be optional


    LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

    LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line

    LJBZ2535 Vertical Automatic Insulating glass

    production line with gas filling on line

    Main technical parameters

    Max.glass size

    2500*3500mm(LJBZ2535)

    Gas filling line 2535G:2500*3200mm

    Min.glass size280*450mm
    Glass thickness3-12mm
    Insulating glass thickness60mm
    Glass washing speed2-10m/min
    Glass conveyor speed:48m/min
    Washing brushes3 pairs
    Water supply:Water consumption:0.5t/h conductivity:≤50μs/cm
    Air supplyFlow: 0.8m/min
    Air pressure≥0.8MPa
    Total power3P380V 50HZ 34KW
    Dimension23500*3500*3700mm

    LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line


    Parts list

    ComponentsBrandRemark
    Servo motorGERMAN SIEMENSFor stepped glass
    Servo driverGERMAN SIEMENSFor stepped glass
    Servo motorGERMAN SIEMENSFor transfer
    Servo motorGERMAN SIEMENSFor press
    PLCGERMAN SIEMENS
    Low voltage componentGERMAN SIEMENS
    Frequency converterGERMAN SIEMENS
    Switching power supplyTaiwan MW
    Optoelectronic switchKorea Autonics
    Pneumatic componentTaiwan Airtac
    Pneumatic componentJapan SMC
    Touch screenTaiwan Wenview
    Travel switchTaiwan Tiande

    Option function of LJBZ2535 Vertical Automatic Insulating glass

    production line:Gas filling on line

    • Gas filling online, we can input the suitable gas proportion value on the touch screen , during the gas filling process, the touch screen can show us the whole gas filing process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.

    LJBZ2535 Vertical Automatic Insulating glass production line with gas filling on lineLJBZ2535 Vertical Automatic Insulating glass production line with gas filling on lineLJBZ2535 Vertical Automatic Insulating glass production line with gas filling on line
