    Efficient Butyl Extruder Machine For Insulating Glass Production Line

    Ask Lasest Price
    Brand Name : LIJIANG
    Model Number : LJTB 01
    Certification : CE
    Price : USD12000/set
    Payment Terms : L/C, T/T
    Supply Ability : 30sets/month
    Delivery Time : 15work days
    • Product Details
    • Company Profile

    Efficient Butyl Extruder Machine For Insulating Glass Production Line

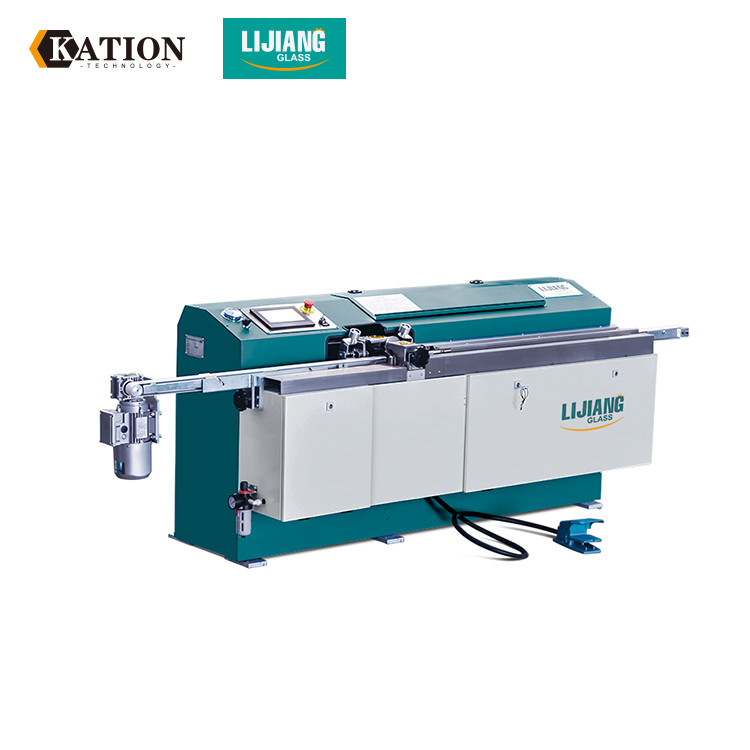

    Butyl Extruder Machine LJTB 01

    Products


    Efficient Butyl Extruder Machine For Insulating Glass Production Line

    Product description

    LJTB 01 butyl silicone sealant automatic butyl rubber extruder is used to disperse aluminum gaskets (and other gaskets) evenly with hot melt butyl rubber. The butyl extruder uses a large electrical control panel, which is easier to operate than before. The speed can be adjusted from 0m / min to 47m / min, which is by far the fastest speed in China. Butyl rubber extruder is very popular in energy saving. The extrusion system adopts German pneumatic and hydraulic pressure boosting system to make the extrusion pressure more stable. Butyl rubber extruder has achieved world-class technical level with its complete functions and famous spare parts.


    Equipment advantages

    • PLC control system, touch screen interface.
    • Automatic recognition of the width of the aluminum strip, the glue nozzle can be automatically adjusted.
    • The key part of the hydraulic system uses components imported from Germany to ensure that the plastic is evenly filled.
    • Quick warm-up to improve work efficiency.
    • With preheating function.
    • With exhaust gas inflation function, improve the sealing quality and save plastic time.
    • Fast coating speed, up to 47m / min.
    • Save glue.


    Squeeze pressure10-18MPa
    Temperature110~140℃
    Aluminum spacer width4-30mm
    Speed0-47m/min
    Diameter of butyl cylinder200mm
    Air supply0.4m³/min
    Air pressure≥0.6MPa
    Total power380V, 5KW, 50HZ
    Dimension2600×680×1100mm(L×W×H)
    Weight650kg

    Details

    Clear interface, simple operation, smart touch screen, updated program.


    the ig machine adopt German Harvey valve, the performance is more stable.


    This is an automatic alarm system to remind you to add butyl glue.


    The booster system uses German pneumatic cylinders and hydraulic cylinders to strongly control the oil pressure.


    hot melt butyl extruder Using guiding wheel to help arc frames coating.
