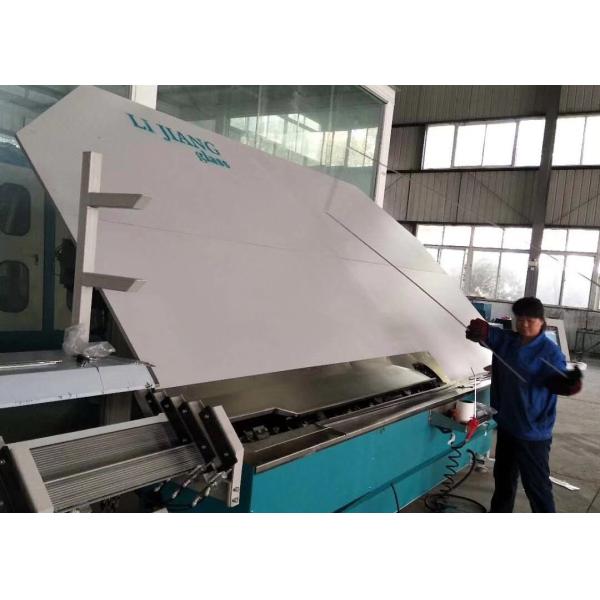

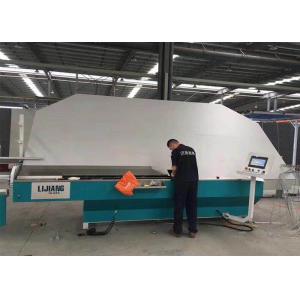

PLC 2000*2000 Aluminum Spacer Bending Machine

    Buy cheap PLC 2000*2000 Aluminum Spacer Bending Machine from wholesalers

    Buy cheap PLC 2000*2000 Aluminum Spacer Bending Machine from wholesalers
    • Buy cheap PLC 2000*2000 Aluminum Spacer Bending Machine from wholesalers
    • Buy cheap PLC 2000*2000 Aluminum Spacer Bending Machine from wholesalers
    • Buy cheap PLC 2000*2000 Aluminum Spacer Bending Machine from wholesalers
    • Buy cheap PLC 2000*2000 Aluminum Spacer Bending Machine from wholesalers

    PLC 2000*2000 Aluminum Spacer Bending Machine

    Ask Lasest Price
    Brand Name : Lijiang
    Model Number : LJZW2020
    Certification : CE
    Price : 21000-24000 USD/SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 20SET/MONTH
    Delivery Time : 30-40WORKING DAYS
    • Product Details
    • Company Profile

    PLC 2000*2000 Aluminum Spacer Bending Machine

    Automatic Aluminum Spacer Bending Machine Insulating Glass Automatic Spacer Bender


    The automatic spacer bending machine is a special device for the production of aluminum frame made of insulated glass, which replaces the traditional production technology. The device can create various convex polygonal aluminum frames, each with an aluminum strip, which strengthens the strength of the aluminum frame and further enhances the sealing effect of the insulating glass.

    Equipment details

    Approved Siemens PLC control system
    There are 4 Siemens servos
    We use 4 sets of racks that can store spacers of different sizes. Use Siemens servos to replace different stands.
    Aluminum spacers are automatically cut out and shipped
    Continuously bent spacer frame
    Automatically avoid connection corners when bending or cutting
    Instead of grabbing the spacer from below, the machine grabs the spacer from above, solving the old-fashioned flip problem.
    It uses industrial computer technology that allows industrial computer workers to draw on-site and directly bend the graphics they draw.
    A separate mechanical hand tool is used to bend the large spacer frame

    Technical data

    Max.bending size2000mm*2000mm (2500mm*2500mm)
    Min.bending size250mm*200mm
    Aluminum spacer width5.5-27mm
    Dimensional error±0.5mm
    Angle error±1º
    Processing speed≤26s
    Air supply≥0.65MPa
    Total powerAC220/380V 50Hz 2.5KW
    Dimension10500mm*2200mm*2600mm

    PLC 2000*2000 Aluminum Spacer Bending MachinePLC 2000*2000 Aluminum Spacer Bending MachinePLC 2000*2000 Aluminum Spacer Bending Machine

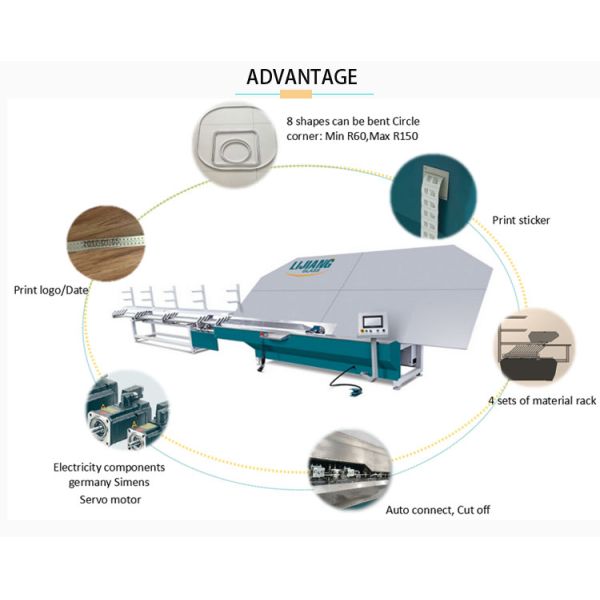

    Leading Technology

    • Spacer printing code function (Optional)

    • Spacer printing code function (Optional)

    • Printing paper label sticker function (Optional),could remove it easily.

    Company Information


    Electrical parameters


    NAMEBRANDNAMEBRAND
    PLCGERMAN SIEMENSTripletTaiwan AIRTAC
    Low voltage electrical apparatusGERMAN SIEMENSCylinderTaiwan AIRTAC
    Servo motorGERMAN SIEMENSSolenoid valveTaiwan AIRTAC
    Servo driverGERMAN SIEMENSSwitch powerTaiwan TEND
    RelayJAPAN OMRONTOUCH SCREENTaiwan WEINVIEW
    SensorKOREA AUTONICSGUIDETaiwan TBI


    Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
