    High Speed 47m/Min Butyl Silicone Extruder Machine Al Spacer Bar

    Ask Lasest Price
    Brand Name : Jinan Lijiang Glass Machinery
    Model Number : LJTB01 Butyl Extruder Machine
    Certification : CE & ISO9000
    Price : Discussible
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15 sets per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    High Speed 47m/Min Butyl Silicone Extruder Machine Al Spacer Bar

    High Speed 47m/min Al Spacer Bar Butyl Silicone Extruder Machine for Insulating Glass Hollow Glass Double Glazed Process
    High Speed 47m/Min Butyl Silicone Extruder Machine Al Spacer Bar

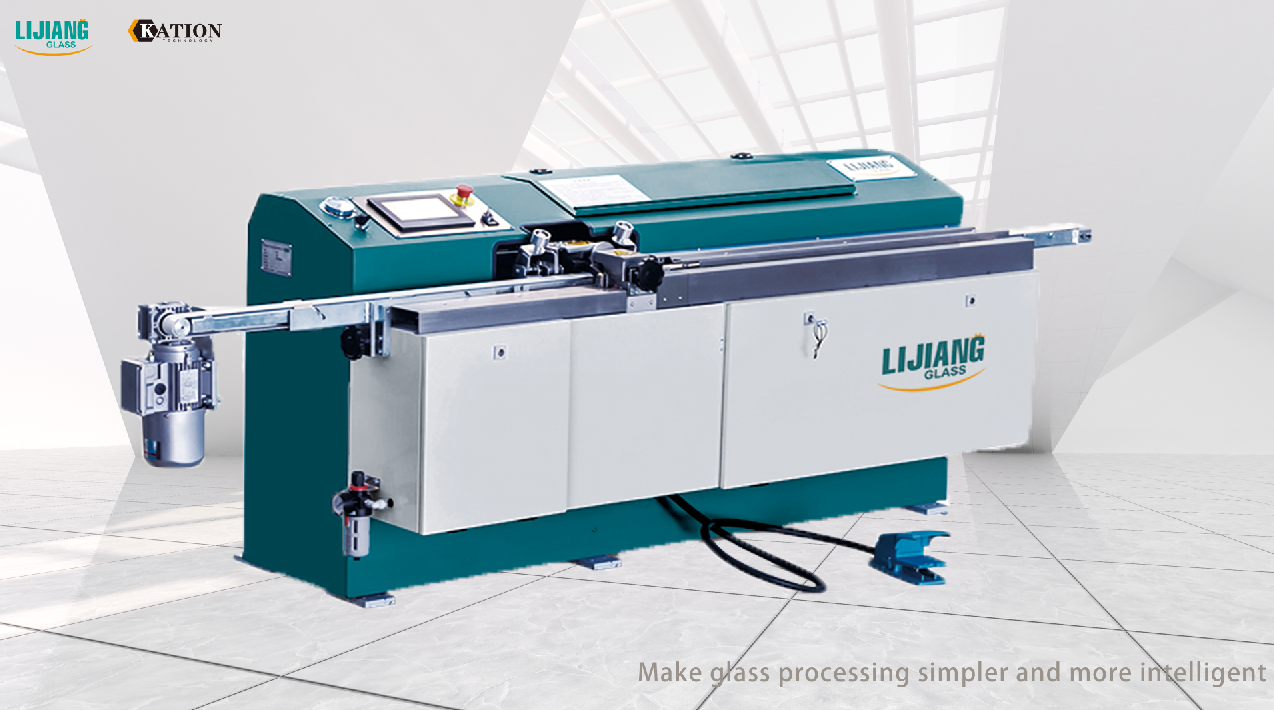

    Butyl Extruder Machine LJTB01
    LJTB 01 Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses a large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by a frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.
    Item.
    Spec.
    Product name
    Butyl Extruder Machine LJTB01
    Squeeze pressure
    10-18MPa
    Temperature
    110~140℃
    Glue thickness
    0.3-0.5mm
    Glue width
    3.5mm
    Aluminum spacer width
    6A - 27A
    Speed
    5-47m/min
    The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl easier. The height of the squeezing head can be adjusted automatically according to different kinds of aluminum spacers.
    Finally, the butyl extruder has reached worldwide technology with the characteristic of complete functions and stable working mode.

    Benefits & Advantages
    1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9. The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.

    The Unique ID Code Number
    All the electrical wires of the machine parts have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

    The Touching Screen Interface
    The touching screen interface, which the parts of the machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

    The Materials Bucket
    The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

    The Electrical Component
    The electrical component is all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
