    Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame

    Ask Lasest Price
    Brand Name : Jinan Lijiang Glass Machinery
    Model Number : LJTB01 Butyl Extruder Machine
    Certification : CE & ISO9000
    Price : Discussible
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15 sets per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame

    Product Description

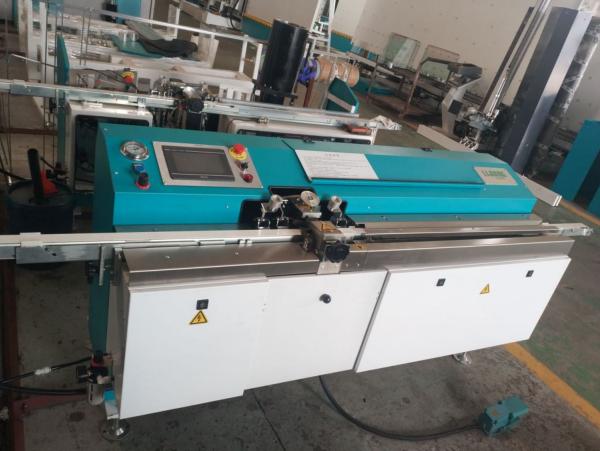

    LJTB01 Butyl Extruder Machine
    LJTB01 Butyl Extruder Machine
    This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
    Squeeze pressure
    10-18MPa
    Temperature
    110~140℃
    Aluminum spacer width
    4-30mm
    Speed
    0-47m/min
    Diameter of butyl cylinder
    200mm
    Air supply
    0.4m³/min
    Air pressure
    ≥0.6MPa
    Total power
    380V, 5KW, 50HZ
    Dimension
    2600×680×1100mm(L×W×H)
    Weight
    650kg
    Detailed Images
    1, Filter out debris automatically through auto exhaust, keep spreading quickly and
    evenly.
    2. Quickly speed of warming, improve work effect.
    3. Adjustable coating speed, can up to 0-47m/min.
    4. Can save about 40% materials, only 5g/m.
    5. Extruder head height adjustment structure.
    6. Automatic centering and clamping structure.
    7. Stable temperature and it is convenient to adjust the sealing material automatically.

    Benefits & Advantages
    1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.

    The Unique ID Code Number
    All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

    The Touching Screen Interface
    The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

    The Materials Bucket
    The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

    The Electrical Component
    The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
