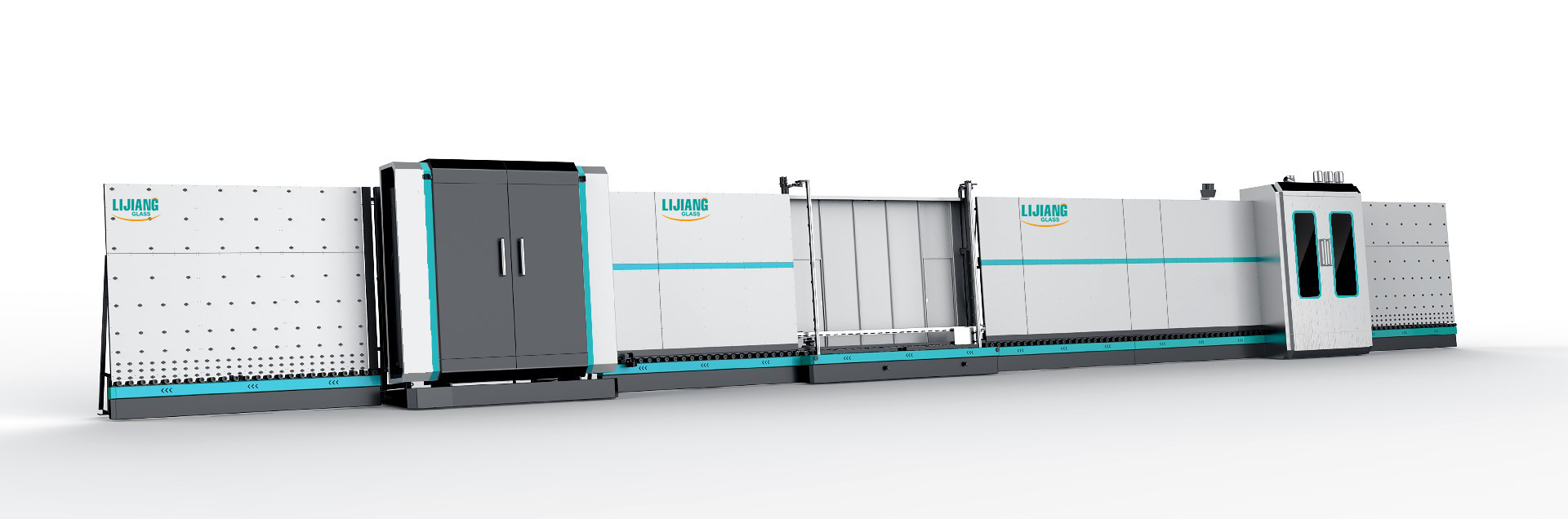

High-speed combined vertical insulating glass special cleaning and
air-drying machine
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards)
and deionized water water supplement (deionized water equipment
shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg
|
Origin of motor and main accessories:
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |
1.Aluminum alloy assembled structure, no scrap concept, permanent
use,high efficiency, energy saving
70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced
mechanical paint or powder；
3. The shaft of rubber roller is made of stainless steel ；
4. The washing part in contact with water is made of stainless
steel；
5. Cleaning department, wind staff overall lift, the maximum lift:
350mm,easy to clean and maintain；
6. Three pairs of brush(150mm)Stainless steel shaft configuration
(low-e glass, ordinary coated glass
and sunshine coated glass can be washed without damaging the coated
surface)；
7. Two pairs of special stainless steel aluminum alloy air knife
configuration, strong wind, good air drying
effect, with heating system(with temperature control device,
optional opening and closing)；
8. The fan is equipped with air filter in the air inlet chamber,
with large air volume and good air drying
effect,The whole fan box is installed in the upper part of glass
washing machine, with the air filter screen
on the side for easy inspection and cleaning；
9. Main drive for gear transmission, frequency control, digital
display , the rotation of the brush roller in
the washing section is driven by independent belts of the upper and
lower motors respectively, the
frequency conversion adjustment speed is stable, the service life
is long, realizes the cleaning high
request special glass；
10. Mechanical button control, cleaning machine digital display,
easy to operate, easy to operate, easy
to maintain；
11. Washing machine water tank outside, convenient water tank
cleaning, water change, check, so
that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is
convenient for workers to operate and
maintain, and can be connected to all manufacturers of edge
grinding machines without gap.
(purchase separately if necessary)
